How to – Filter SubGrid in Dynamics 365 (with New Form Rendering or Turbo Form)

Recently we had a requirement wherein we wanted to see all the child records of a record in a SubGrid .

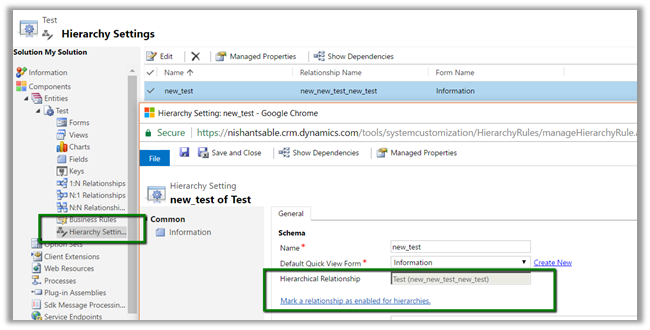

We had self-referential (hierarchical relationship) enabled for that entity.

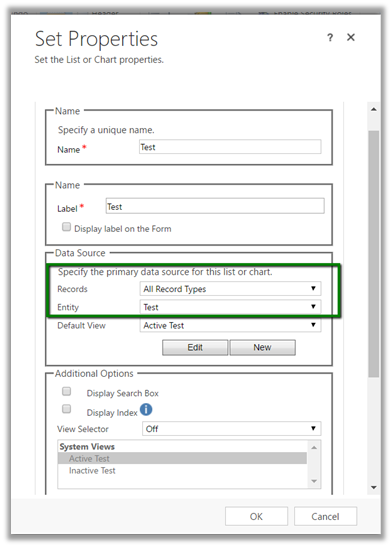

Configuring the Sub Grid on the form.

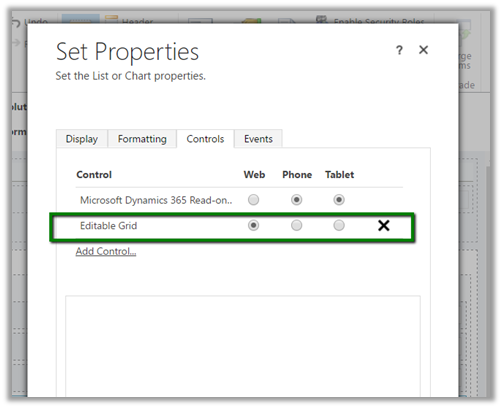

We have also enabled the Editable grid for the Sub Grid.

The JavaScript code

</p>
<p>function filterSubGrid()<br />
{<br />
// get the current record's guid<br />
var entityId = Xrm.Page.data.entity.getId();</p>
<p>// refer the subgrid<br />
var testGrid = window.parent.document.getElementById("Test");</p>
<p>if (testGrid == null)<br />
{<br />
setTimeout(function () {filterSubGrid(); }, 2000);<br />
return;<br />
}</p>
<p>// fetch xml code using User operator<br />
var fetchXml = "&lt;fetch distinct='false' no-lock='false' mapping='logical'&gt;" +<br />
"&lt;entity name='new_test' &gt;" +<br />
"&lt;attribute name='new_name' /&gt;" +<br />
" &lt;attribute name='new_testname' /&gt;" +<br />
"&lt;order attribute='new_name' descending='true' /&gt;" +<br />
"&lt;filter type='and'&gt;" +<br />
"&lt;condition attribute='new_testid' operator='under' value='"+entityId+"'"+"/&gt;" +<br />
"&lt;/filter&gt;" +<br />
"&lt;/entity&gt;" +<br />
"&lt;/fetch&gt;";</p>
<p>if (testGrid.control != null)<br />
{<br />
testGrid.control.SetParameter("fetchXml", fetchXml);<br />
testGrid.control.refresh();<br />
}<br />
else<br />
{<br />
setTimeout(filterSubGrid, 500);<br />
}<br />
}</p>
<p>

The filtered Sub Grid (editable)

Note :- The JavaScript code is unsupported as we are making use of getElementById instead of Xrm library to access subgrid.

Hope it helps..

Author: Nishant Rana

I love working in and sharing everything about Microsoft.NET technology ! View all posts by Nishant Rana
